威富科技的光纖快速接頭可適用於單模/多模900 um與3mm光纜。本產品不需額外工具、固化膠、加熱及研磨設備等即可輕易地完成現場組裝工作。威富科技的光纖快速接頭提供快速與簡易的光纖終端處理，可取代傳統使用的光纖引線熔接光纜的方法，其外觀與傳統光纖連接頭一樣，並能有效提升現場施工效率。本產品具備光纖V槽結構設計與光纖套筒預型處理，確保低光學損失與縮短安裝時間。

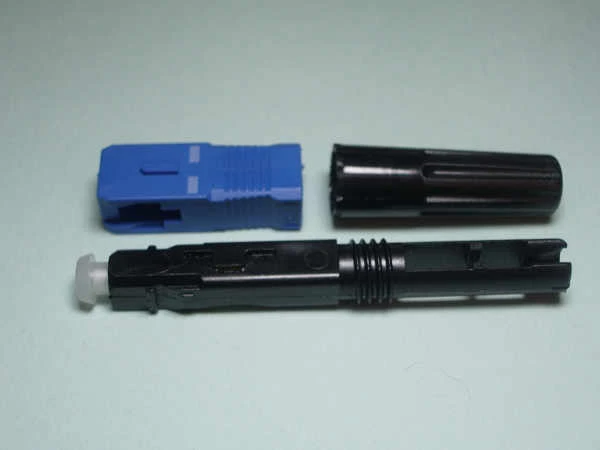

Quick Assembly Connector
Waveform (WFT’s) Quick Assembly Connector can provide a quick and easy termination of fiber,
without polishing or adhesives. This product is designed V-groove shape with high quality material to guarantee
the safety due to thermal change. WFT’s Quick Assembly Connectors are available for single-mode and multi-mode fibers with 900 um and 3mm cable application. This connector system doesn’t need any requirement
such as epoxy, adhesive and costly curing ovens. No electrical power supply is needed to assemble the Quick Assembly connector.
Features
Quick and easy fiber termination in the field.
Reliable and superior optical performance.
Field installable, cost effective.
No epoxy and polishing required.
Visual indication of proper termination.
Compatible with factory-assembled conventional SC.
Easy and fast assembly without special tool.
Applicable for 250μm/900μm/2mm/3mm cable.
